Description
| Magnification | 1-6x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Focal Plane | Second Focal Plane |
| Reticle | VMR-2 (MRAD) |
| Eye Relief | 4.0" |
| Field of View | 115.2' - 20.5' @ 100 yds |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | .2 MRAD |
| Travel Per Rotation | 20 MRAD |
| Max Elevation Adjustment | 43 MRAD |
| Max Windage Adjustment | 43 MRAD |
| Parallax Setting | 100 yds. |
| Length | 10.1" |
| Weight | 21.5 oz |

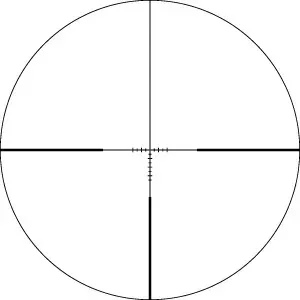

VMR-2 (MRAD)
The VMR-2 is a hashmarked ranging reticle with an illuminated center dot that uses MRAD-based subtension lines for ranging, holdover and windage corrections.
Subtension detail for Razor HD Gen II-E riflescope with VMR-2 MRAD reticle.
