EagleVision 1/2 UNF Off Set Moderator Adapter – EDgun Leshiy 1

$40.00

The Eagle Vision- England, Offers this Second to None add-on Solution to your Leshiy Classic Sound Moderating.
This Moderator Adapter will make you able to add an Offset/Extra Moderator to Your EDgun Leshiy Classic

Description

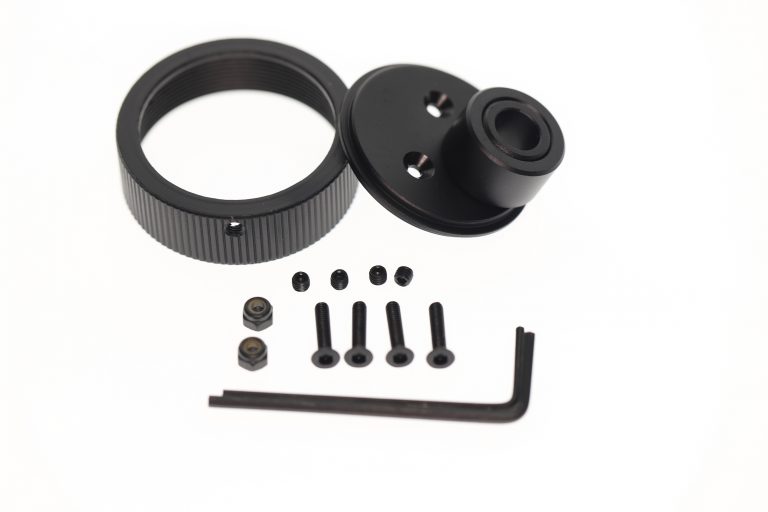

EDGUN LESHIY 1/2 x 20 UNF OFF-SET MODERATOR ADAPTOR



This adaptor fits the EDgun Leshiy 1 with 250mm barrel 177 .22 and .25 caliber.



Please follow this guide, to ensure correct installation.

1. Remove front securing ring and O-ring from the end of the moderator.

2. Extract the plastic baffle.

3. Carefully line up the 1/2 x 20 UNF adaptor hole with your baffle.

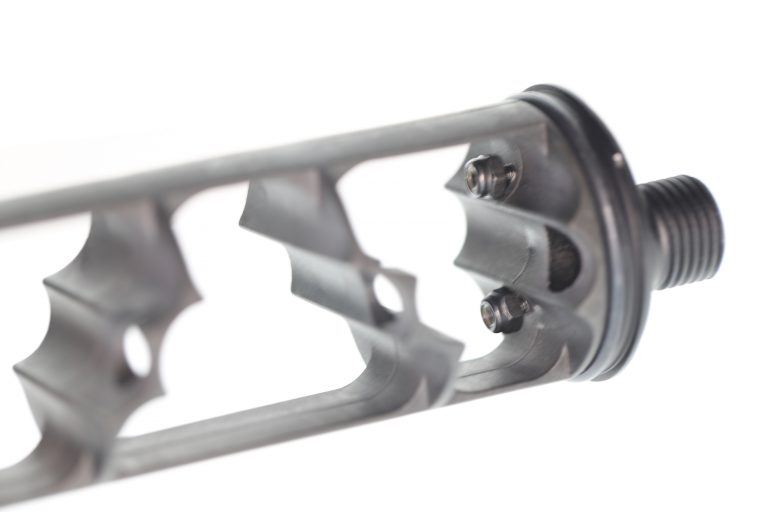

4. Make a 2mm to 2.5mm hole in your baffleplace the screws and tighten up with the supplied locking nuts.

5. Place the O-ring between the baffle and the adaptor.

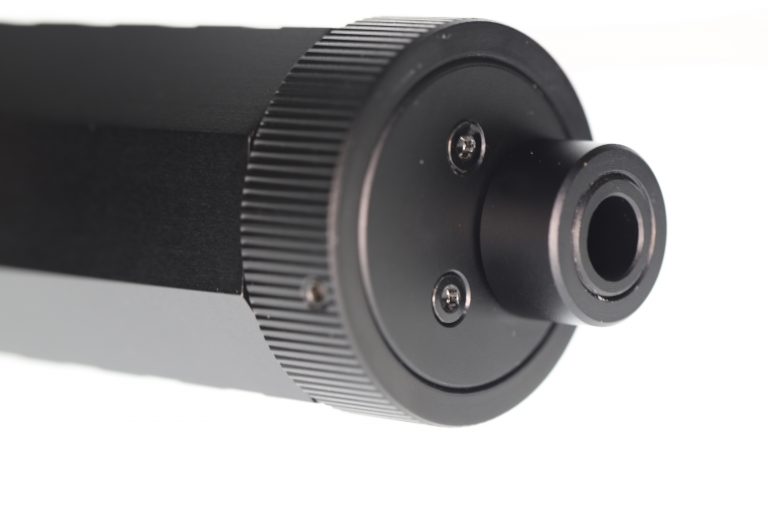

6. Reinsert the baffle and tighten with the new securing ring.

7. Lock the securing ring and baffle with the supplied, (4) M3 grub screws.


Important:

Please follow this guide correctly. If you miss one of the steps your baffle will move while you tighten the moderator, which may result in damage.
